TAU2819,12-B
ActiveAgilink Microwires
CABLE 12COND 28AWG WHT SHLD 500'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TAU2819,12-B |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Perfluoro Alkoxy (PFA) |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [diameter] | 0.0031 in |
| Features | Oil Resistant, UL94-V0, Temperature, Mechanical Resistant, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 3.58 mm |
| Jacket (Insulation) Diameter [diameter] | 0.141 '' |
| Jacket (Insulation) Material | Perfluoro Alkoxy (PFA) |
| Jacket (Insulation) Thickness | 0.026 in |
| Jacket (Insulation) Thickness | 0.66 mm |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 12 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -196 °C |
| Shield Coverage | 92 % |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Voltage | 600 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 5818.56 | |
| 2 | $ 5642.42 | |||
| 3 | $ 5465.92 | |||
| 4 | $ 5289.60 | |||
| 5 | $ 5113.20 | |||
Description
General part information
TAU2819,12-B

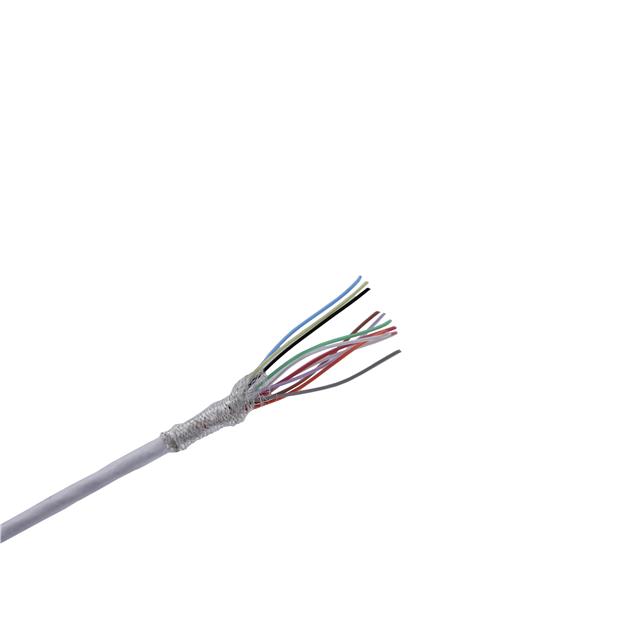

12 Conductor Multi-Conductor Cable White 28 AWG Braid 500.0' (152.4m)
