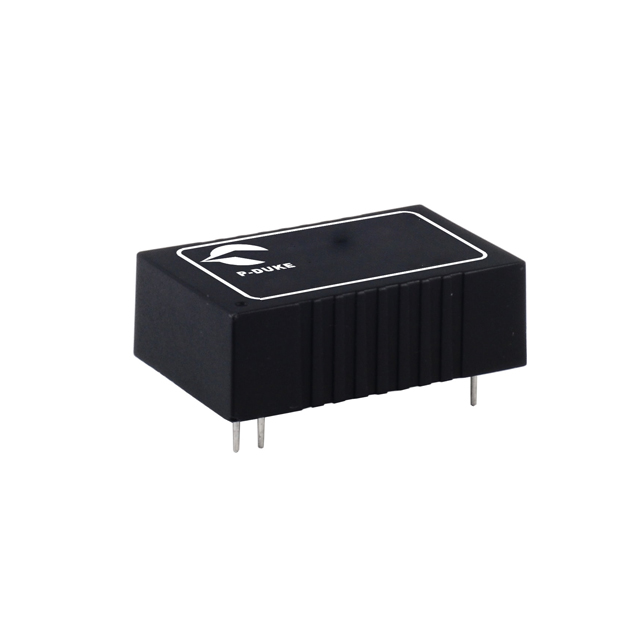

MPP10-05S12A
ActiveP-DUKE Technology
DC DC CONVERTER 12V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPP10-05S12A
ActiveP-DUKE Technology
DC DC CONVERTER 12V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPP10-05S12A |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, CB, FCC |
| Current - Output (Max) [Max] | 830 mA |
| Efficiency | 86.5 % |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 5 Leads |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 5000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 60.04 | |
| 10 | $ 52.77 | |||
| 25 | $ 50.13 | |||
| 50 | $ 48.22 | |||
| 100 | $ 46.38 | |||
Description
General part information
MPP10-05S12A
Isolated Module DC DC Converter 1 Output 12V 830mA 4.5V - 9V Input
