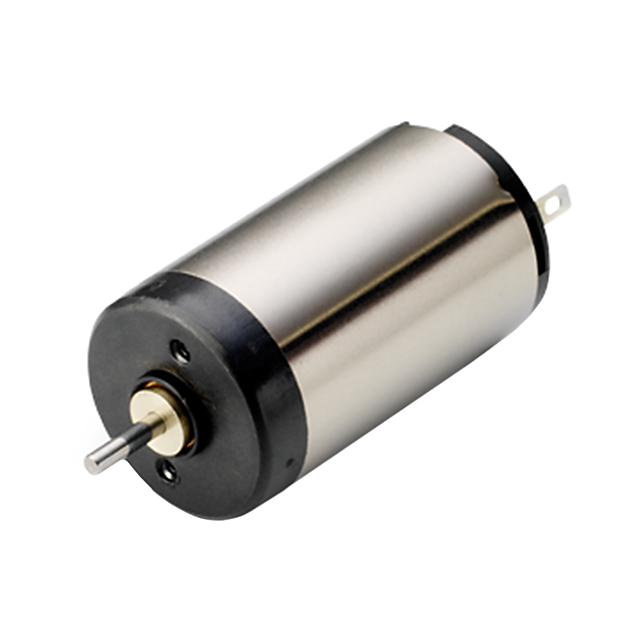

16N28-210E.1
ActivePortescap
STANDARD MOTOR 9700 RPM 7.5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16N28-210E.1
ActivePortescap
STANDARD MOTOR 9700 RPM 7.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 16N28-210E.1 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing | 7.5 mm |
| Length - Shaft and Bearing [x] | 0.295 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 10 mm |
| Mounting Hole Spacing | 0.394 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 1.7 W |
| RPM | 9700 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 16 mm |
| Size / Dimension [diameter] | 0.629 " |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 2.9 mNm |
| Torque - Rated (oz-in / mNm) | 0.41 oz-in |
| Type | DC Motor |
| Voltage - Rated | 7.5 VDC |
| Weight | 24.04 g |
| Weight | 0.053 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 68.19 | |
| 5 | $ 62.67 | |||
| 10 | $ 60.43 | |||
| 25 | $ 57.59 | |||
| 50 | $ 55.53 | |||
| 100 | $ 53.55 | |||
Description
General part information
16N28-210E.1
Brushed DC Motor Standard 9700 RPM 1.7W 7.5VDC
