SP-185-MM-24
ActiveMaury Microwave
1.85MM MALE TO 1.85MM MALE STABI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP-185-MM-24
ActiveMaury Microwave
1.85MM MALE TO 1.85MM MALE STABI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-185-MM-24 |
|---|---|
| 1st Connector | 1.85mm Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Features | Phase Stable, Shielded, Ruggedized, Armored Cable, Color Coded |
| Frequency - Max [Max] | 67 GHz |
| Length [x] | 457.2 mm |
| Length [x] | 457.2 mm |
| Overall Impedance | 50 Ohms |
| Style [Max] | 1.85 mm |
| Style [Min] | 1.85 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 1886.00 | |
| 5 | $ 1698.00 | |||
| 10 | $ 1603.00 | |||
Description
General part information
SP-185-MM-24

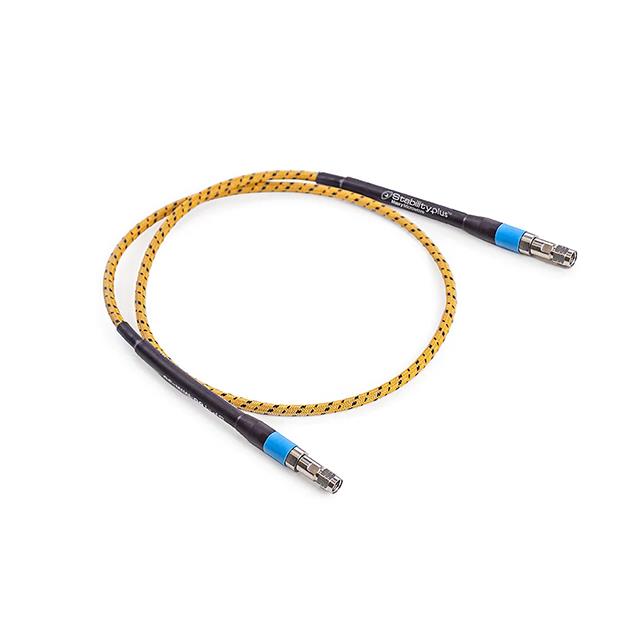

Cable Assembly Coaxial 1.85mm to 1.85mm 18.00" (457.20mm)
