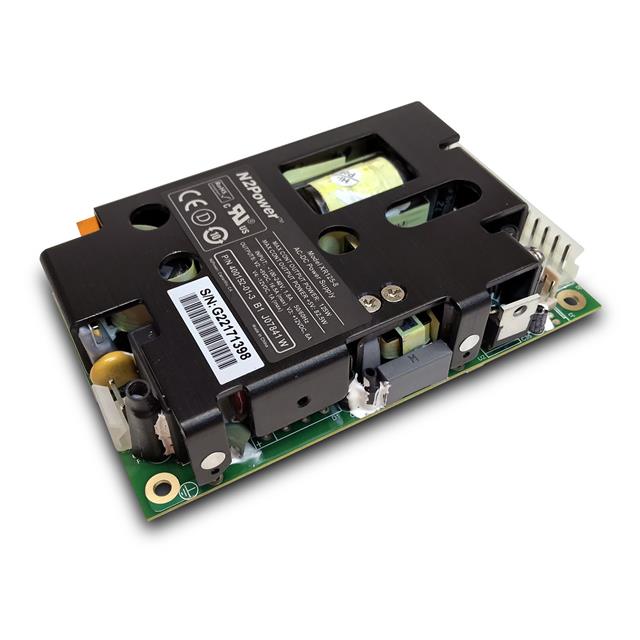

400152-01-3
ActiveN2Power
AC/DC CONVERTER 5V +/-12V 167W
Deep-Dive with AI
Search across all available documentation for this part.
400152-01-3
ActiveN2Power
AC/DC CONVERTER 5V +/-12V 167W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 400152-01-3 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 16.5 A |
| Current - Output 2 [custom] | 6 A |
| Current - Output 4 | 1 A |
| Efficiency | 91 % |
| Features | Load Sharing, PFC, Standby Output, Remote Sense, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 167 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [z] | 1.32 in |
| Size / Dimension [z] | 33.6 mm |
| Standard Number | 60950-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 143.91 | |
Description
General part information
400152-01-3
Open Frame AC DC Converters 3 Output 5V 12V -12V 100 ~ 240 VAC Input
Documents
Technical documentation and resources
No documents available
