1500/12 DS
ActiveAdels-Contact
CONN TERM STRIP 12CIRC 0.531"
Deep-Dive with AI
Search across all available documentation for this part.
1500/12 DS
ActiveAdels-Contact
CONN TERM STRIP 12CIRC 0.531"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1500/12 DS |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Natural |
| Material - Insulation | Polyamide (PA6), Nylon 6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 12 |
| Number of Rows | 2 |
| Pitch [x] | 0.531 in |
| Pitch [x] | 13.5 mm |
| Terminal Block Type | Eurostyle Terminal Strip |
| Top Termination | Screws |
| Voltage Rating | 500 V |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 3.91 | |
Description
General part information
1500/12 DS

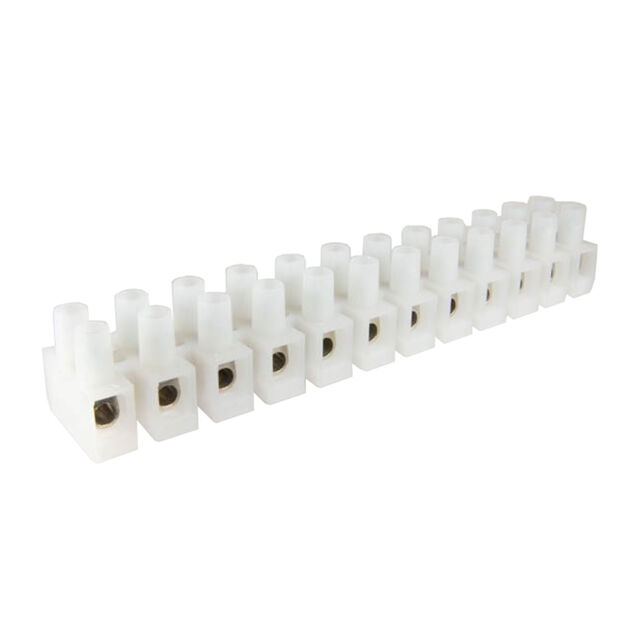

12 Circuit 0.531" (13.50mm) Eurostyle Terminal Strip Connector Screws
Documents
Technical documentation and resources
No documents available
