Technical Specifications
Parameters and characteristics for this part
| Specification | PPT7X-125GIT-MOD-PN2-B |
|---|---|
| Accuracy | 0.5 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 200 PSI |
| Maximum Pressure [Max] | 1378.95 kPa |
| Operating Pressure [custom] | 861.84 kPa |
| Operating Pressure [custom] | 125 PSI |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output | 7 b |
| Output Type | I2C |
| Package / Case | Cylinder, Threaded |
| Port Size | 0.36 " |
| Port Size | 9.14 mm |
| Port Size | Male |
| Port Style | Barbed |
| Pressure Type | Sealed Gauge |
| Termination Style | 1.5" Cable with Connector |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.00 | |
Description
General part information
PPT7X-125GIT-MOD-PN2-B

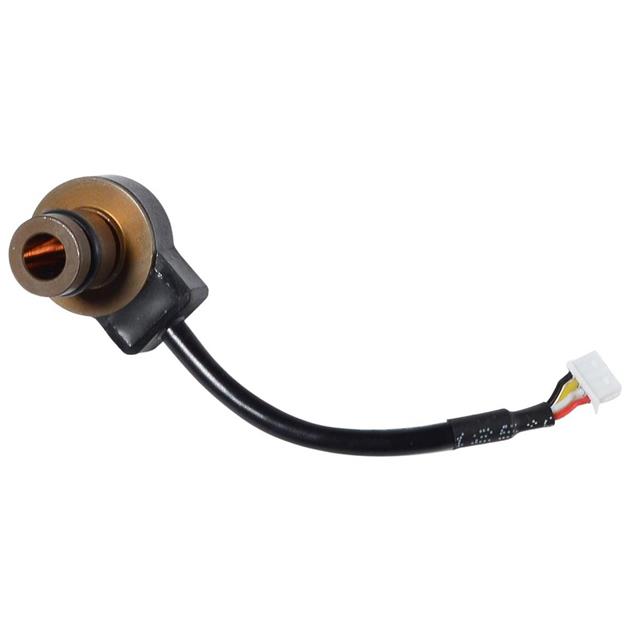

Pressure Sensor 125PSI (861.84kPa) Sealed Gauge Male - 0.36" (9.14mm) O-Ring 7 b Cylinder, Threaded
