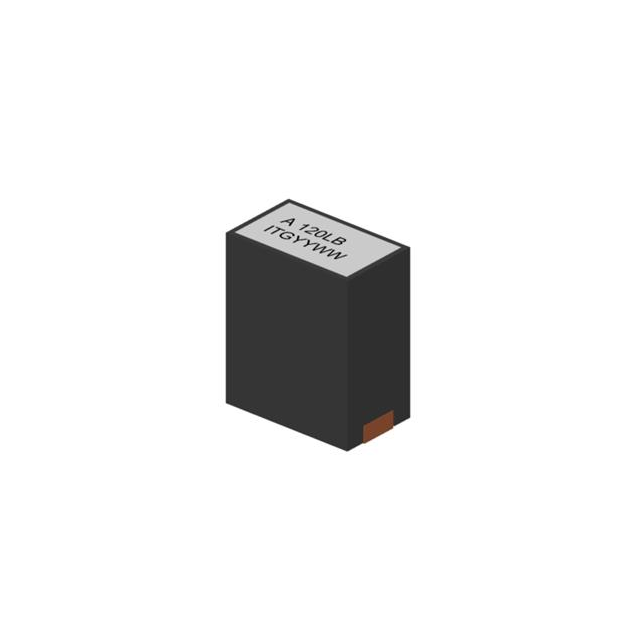

SLA40476B-80L
ActiveITG Electronics, Inc.
FIXED IND 80NH 77A 0.125MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLA40476B-80L
ActiveITG Electronics, Inc.
FIXED IND 80NH 77A 0.125MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLA40476B-80L |
|---|---|
| Current - Saturation (Isat) | 150 A |
| Current Rating (Amps) | 77 A |
| DC Resistance (DCR) | 0.125 mOhm |
| Height - Seated (Max) [Max] [z] | 12 mm |
| Height - Seated (Max) [Max] [z] | 0.472 " |
| Inductance | 80 nH |
| Inductance Frequency - Test | 500 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.236 in |
| Tolerance | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SLA40476B-80L
80 nH Shielded Inductor 77 A 0.125mOhm Nonstandard
