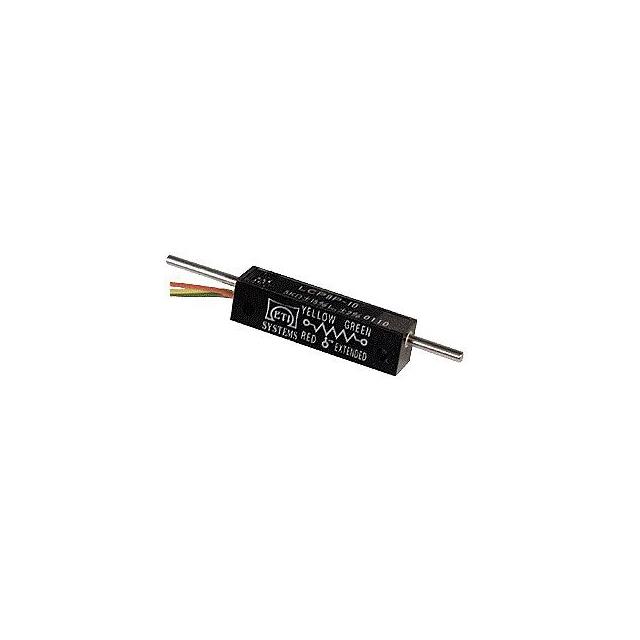

LCP8S-10-10K
ActiveETI Systems
LINEAR POT 10K OHM 0.2W PLASTIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCP8S-10-10K |
|---|---|
| Actuator Diameter [diameter] | 0.079 " |
| Actuator Diameter [diameter] | 2.01 mm |
| Actuator Length [z] | 9.98 mm |
| Actuator Length [z] | 0.393 in |
| Actuator Type | Round |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Mounting Type | Chassis Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.2 W |
| Power (Watts) | 1/5 |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Size - Body [x] | 32 mm |
| Size - Body [x] | 1.26 in |
| Size - Body [y] | 7.37 mm |
| Size - Body [y] | 0.29 in |
| Taper | Linear |
| Temperature Coefficient | 400 ppm/°C |
| Termination Style | Wire Leads |
| Tolerance | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.25 | |
| 10 | $ 75.32 | |||
| 100 | $ 57.48 | |||
Description
General part information
LCP8S-10-10K
10k Ohm 1 Gang Linear Chassis Mount Potentiometer 1.0 Turns Conductive Plastic 0.2W, 1/5W Wire Leads
