PE44911
ActivePasternack

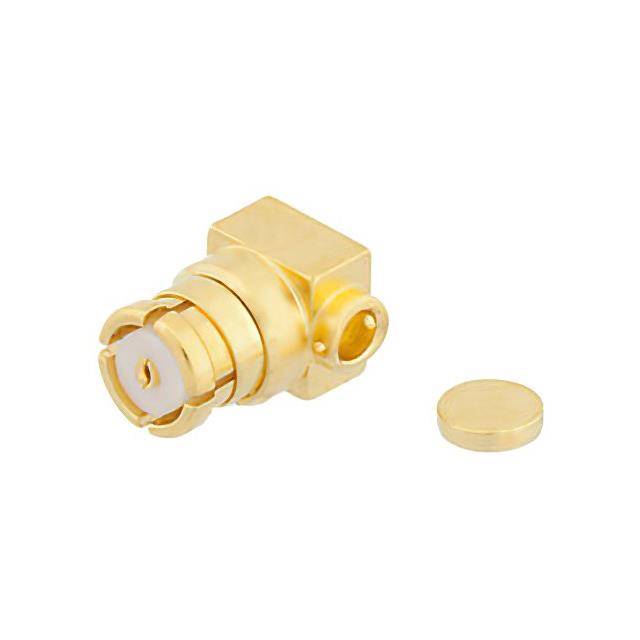

SMP FEMALE RIGHT ANGLE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
PE44911
ActivePasternack
SMP FEMALE RIGHT ANGLE CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44911 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 46.99 | |
| 25 | $ 44.64 | |||
| 50 | $ 42.29 | |||
| 100 | $ 40.41 | |||
Description
General part information
PE44911
SMP Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
Documents
Technical documentation and resources
No documents available
