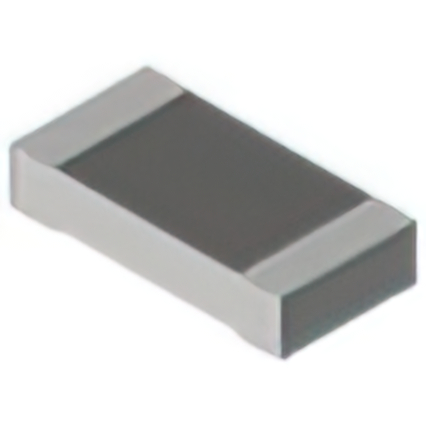

RVCA1206JT510K
ActiveStackpole Electronics Inc
RES, HV, 1206, 510 KOHM, 5%, 0.2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RVCA1206JT510K
ActiveStackpole Electronics Inc
RES, HV, 1206, 510 KOHM, 5%, 0.2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RVCA1206JT510K |
|---|---|
| Composition | Thick Film |
| Features | Anti-Sulfur, High Voltage, Automotive AEC-Q200 |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Ratings | AEC-Q200 |
| Resistance | 510 kOhms |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [y] | 1.55 mm |
| Size / Dimension [y] | 0.061 in |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 25000 | $ 0.05 | |
Description
General part information
RVCA1206JT510K
510 kOhms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, High Voltage Thick Film
