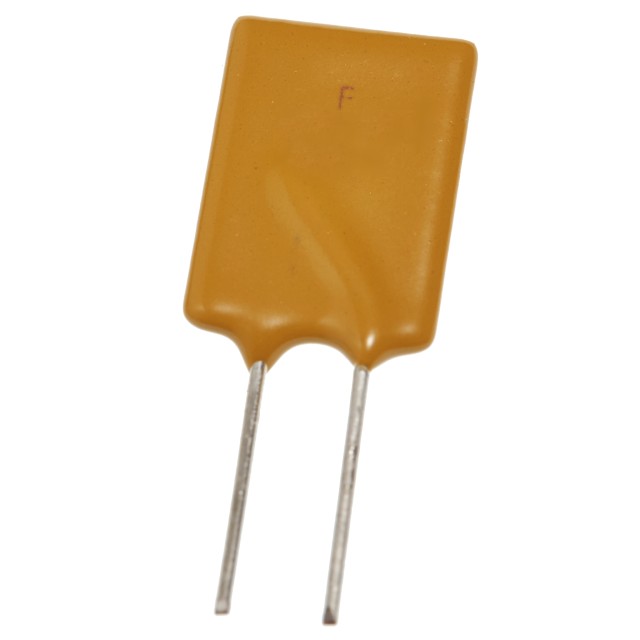

FRX017-60F
ActiveRFE/Fuzetec
RESETTABLE FUSE - PPTC RADIAL LE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FRX017-60F
ActiveRFE/Fuzetec
RESETTABLE FUSE - PPTC RADIAL LE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FRX017-60F |
|---|---|
| Approval Agency | cUL, TUV, UL |
| Current - Hold (Ih) (Max) [Max] | 170 mA |
| Current - Max [Max] | 40 A |
| Current - Trip (It) | 340 mA |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Lead Spacing | 5.1 mm |
| Lead Spacing | 0.201 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) [Min] | 2 Ohms |
| Resistance - Post Trip (R1) (Max) [Max] | 8 Ohms |
| Size / Dimension [diameter] | 7.4 mm |
| Size / Dimension [diameter] | 0.291 in |
| Time to Trip | 3 s |
| Voltage - Max [Max] | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 0.30 | |
| 100 | $ 0.26 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 5000 | $ 0.14 | |||
Description
General part information
FRX017-60F
PTC Resettable Fuse 60V 170 mA Ih Through Hole Radial, Disc
