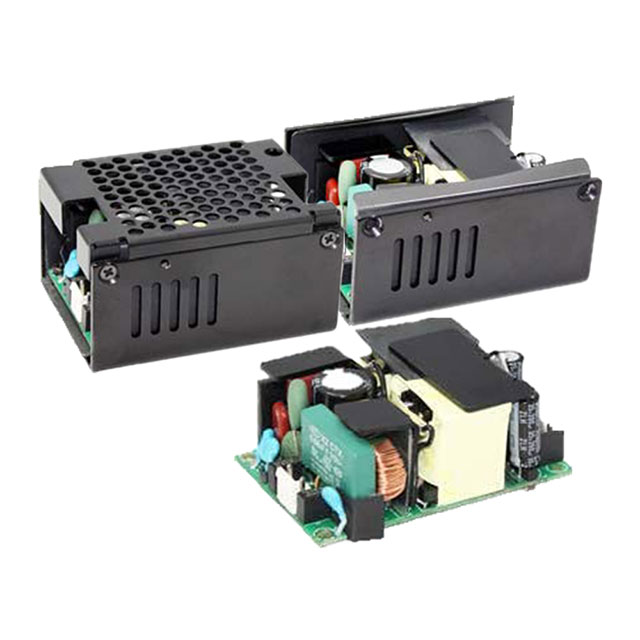

HDM120O-148
ActiveDigital Power Corporation
AC/DC CONVERTER 48V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDM120O-148
ActiveDigital Power Corporation
AC/DC CONVERTER 48V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDM120O-148 |
|---|---|
| Applications | Medical |
| Approval Agency | UL, IEC |
| Current - Output 1 | 2.5 A |
| Efficiency | 91 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Size / Dimension [x] | 80 mm, 3.15 in |
| Size / Dimension [y] | 59.7 mm, 2.35 in |
| Size / Dimension [z] | 38 mm, 1.5 in |
| Standard Number | 60601 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 101.80 | |
Description
General part information
HDM120O-148
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
