LED-TL-05-01
ActiveMOFLASH SIGNALLING

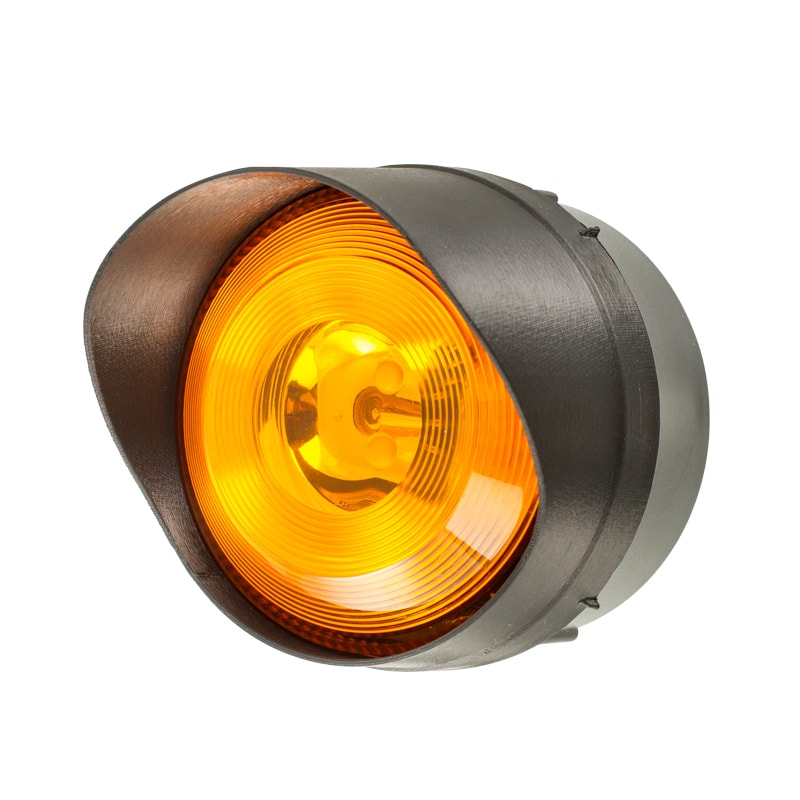

TRAFFIC LIGHT, AMBER, CONTI/FLASH, 280V ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
LED-TL-05-01
ActiveMOFLASH SIGNALLING
TRAFFIC LIGHT, AMBER, CONTI/FLASH, 280V ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LED-TL-05-01 |
|---|---|
| Function - Lighting | Steady, Flashing |
| Ingress Protection | IP65 |
| Light Color | Amber |
| Number of Stacks | 1 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Screw Terminal |
| Type | Beacon |
| Voltage - Supply [Max] | 280 VAC/DC, 380 VDC |
| Voltage - Supply [Min] | 85 VAC, 85 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LED-TL-05-01
Stack Light Beacon Amber LED Screw Terminal
Documents
Technical documentation and resources
