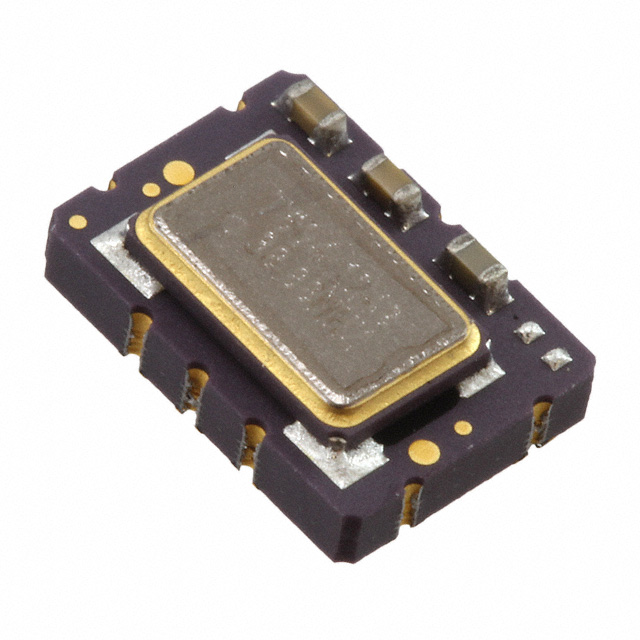

T604-010.0M
ActiveConnor Winfield
XTAL OSC VCTCXO 10.0000MHZ LVCMO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T604-010.0M
ActiveConnor Winfield
XTAL OSC VCTCXO 10.0000MHZ LVCMO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T604-010.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 6 mA |
| Frequency | 10 MHz |
| Frequency Stability | 280 ppb |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.094 " |
| Height - Seated (Max) [Max] [z] | 2.4 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | VCTCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 25.31 | |
| 10 | $ 21.87 | |||
| 50 | $ 19.77 | |||
| 100 | $ 18.93 | |||
| Digi-Reel® | 1 | $ 25.31 | ||
| 10 | $ 21.87 | |||
| 50 | $ 19.77 | |||
| 100 | $ 18.93 | |||
| Tape & Reel (TR) | 250 | $ 18.00 | ||
Description
General part information
T604-010.0M
10 MHz VCTCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
