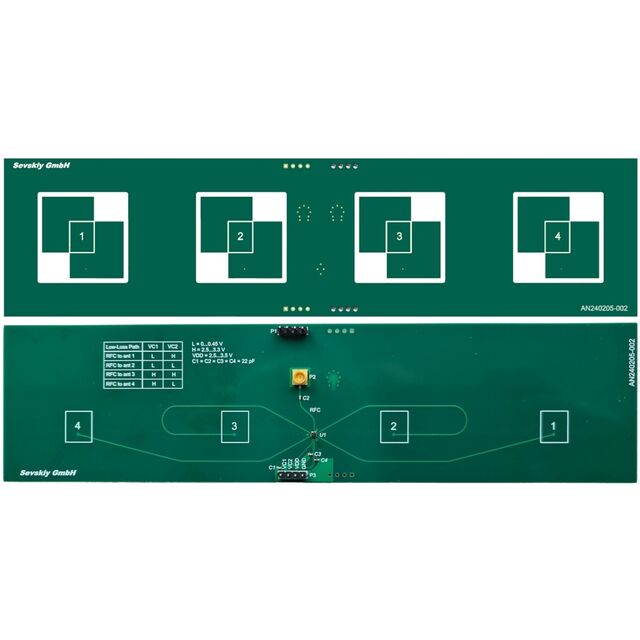

RF ANT 4X1 ARRAY 2.45GHZ AOA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN240205-002
ActiveSevskiy GmbH
RF ANT 4X1 ARRAY 2.45GHZ AOA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN240205-002 |
|---|---|
| Antenna Type | Patch, 4-Element |
| Features | Cable - 150mm |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 0.6 dBi |
| Height (Max) [Max] | 0.063 in |
| Height (Max) [Max] | 1.6 mm |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| Return Loss | -15 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | SMP |
| VSWR | 1.43 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.19 | |
| 10 | $ 36.74 | |||
| 50 | $ 35.34 | |||
| 100 | $ 34.00 | |||
| 500 | $ 32.71 | |||
| 1000 | $ 31.46 | |||
| 5000 | $ 30.27 | |||
| 10000 | $ 29.12 | |||
| 50000 | $ 28.01 | |||
Description
General part information
AN240205-002
RF ANTENNA Bluetooth LE 5.1/5.2, AoA Patch, 4-Element SMP Screw Mount
