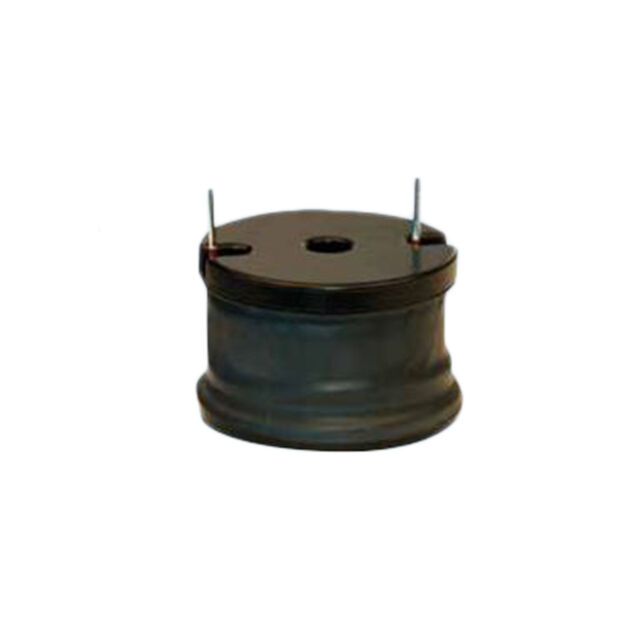

RL-1256-3-33
ActiveRenco Electronics, Inc.
FIXED IND 33UH 13.5A 15MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RL-1256-3-33
ActiveRenco Electronics, Inc.
FIXED IND 33UH 13.5A 15MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RL-1256-3-33 |
|---|---|
| Current - Saturation (Isat) | 20 A |
| Current Rating (Amps) | 13.5 A |
| DC Resistance (DCR) | 17 mOhm |
| Height - Seated (Max) [Max] [z] | 0.85 in |
| Height - Seated (Max) [Max] [z] | 21.59 mm |
| Inductance | 33 µH |
| Inductance Frequency - Test | 10 kHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Vertical Cylinder |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 1.1 in |
| Size / Dimension [diameter] | 27.94 mm |
| Supplier Device Package | Radial |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.82 | |
| 10 | $ 5.61 | |||
| 25 | $ 5.15 | |||
| 50 | $ 4.85 | |||
| 100 | $ 4.62 | |||
| 250 | $ 4.55 | |||
| 500 | $ 4.40 | |||
| 1000 | $ 4.03 | |||
Description
General part information
RL-1256-3-33
33 µH Unshielded Wirewound Inductor 13.5 A 17mOhm Max Radial, Vertical Cylinder
