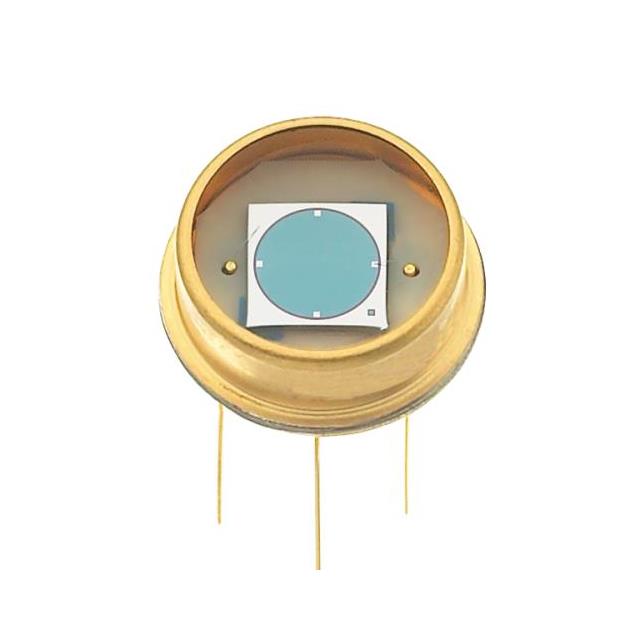

UV-035DQ
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE 980NM TO8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UV-035DQ
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE 980NM TO8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UV-035DQ |
|---|---|
| Active Area | 34 mm˛ |
| Color - Enhanced | Ultraviolet (UV) |
| Diode Type | Planar Diffusion |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | TO-8 Style, 2 Lead |
| Response Time | 1 µs |
| Responsivity @ nm | 0.33 A/W |
| Voltage - DC Reverse (Vr) (Max) [Max] | 5 V |
| Wavelength | 980 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.28 | |
| 10 | $ 47.40 | |||
| 25 | $ 44.43 | |||
| 100 | $ 42.95 | |||
Description
General part information
UV-035DQ
Photodiode 980nm 1µs TO-8 Style, 2 Lead
Documents
Technical documentation and resources
