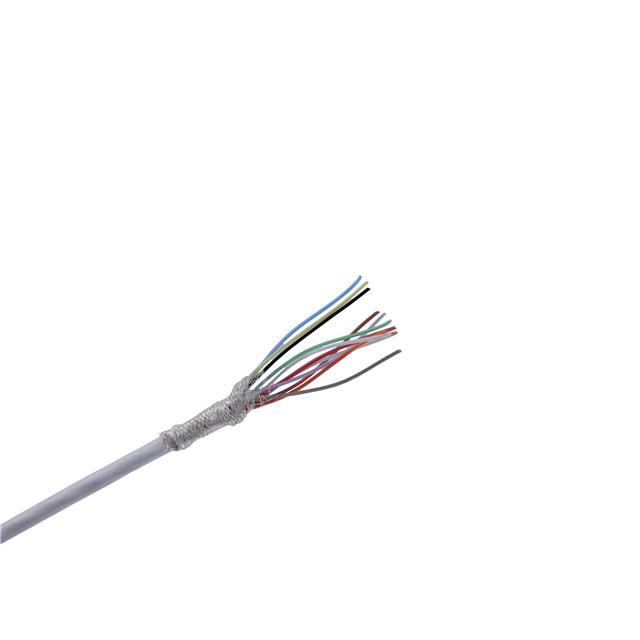

TAU-3019,12-A
ActiveAgilink Microwires
CABLE 12COND 30AWG WHT SHLD 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TAU-3019,12-A |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Perfluoro Alkoxy (PFA) |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 0.0025 " |
| Features | Oil Resistant, UL94-V0, Temperature, Mechanical Resistant, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 3.12 mm |
| Jacket (Insulation) Diameter [diameter] | 1.476 in |
| Jacket (Insulation) Material | Perfluoro Alkoxy (PFA) |
| Jacket (Insulation) Thickness | 0.022 in |
| Jacket (Insulation) Thickness | 0.559 mm |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 12 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -196 °C |
| Shield Coverage | 92 % |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Voltage | 600 V |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 2830.40 | |
| 2 | $ 2741.95 | |||
| 3 | $ 2650.20 | |||
| 4 | $ 2565.05 | |||
| 5 | $ 2441.10 | |||
Description
General part information
TAU-3019,12-A
12 Conductor Multi-Conductor Cable White 30 AWG Braid 100.0' (30.5m)
