500/ 2 35
ActiveAdels-Contact
CONN TERM STRIP 2CIRC 0.394"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 500/ 2 35 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Natural |
| Current Rating (Amps) | 24 A |
| Material - Insulation | Polyamide (PA6), Nylon 6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 2 |
| Number of Rows | 2 |
| Number of Wire Entries | 4 |
| Pitch [x] | 0.394 in |
| Pitch [x] | 10 mm |
| Terminal Block Type | Eurostyle Terminal Strip |
| Top Termination | Screws |
| Voltage Rating | 450 V |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.83 | |
| 10 | $ 0.46 | |||
| 25 | $ 0.34 | |||
Description
General part information
500/ 2 35

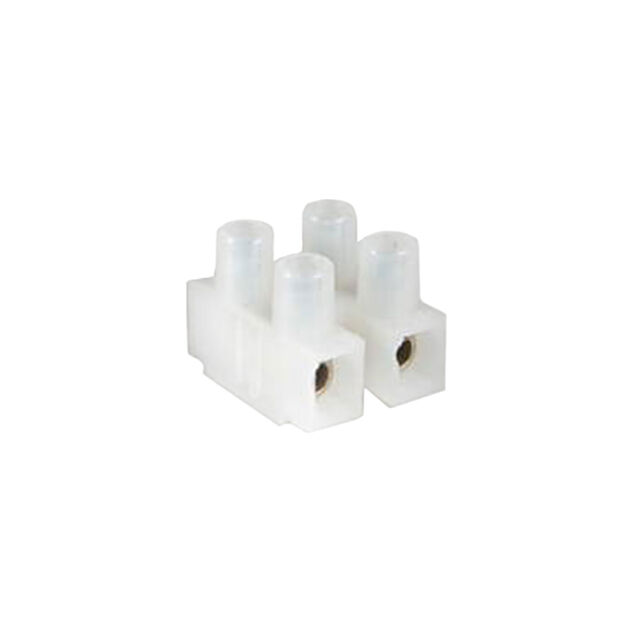

2 Circuit 0.394" (10.00mm) Eurostyle Terminal Strip Connector Screws
Documents
Technical documentation and resources
No documents available
