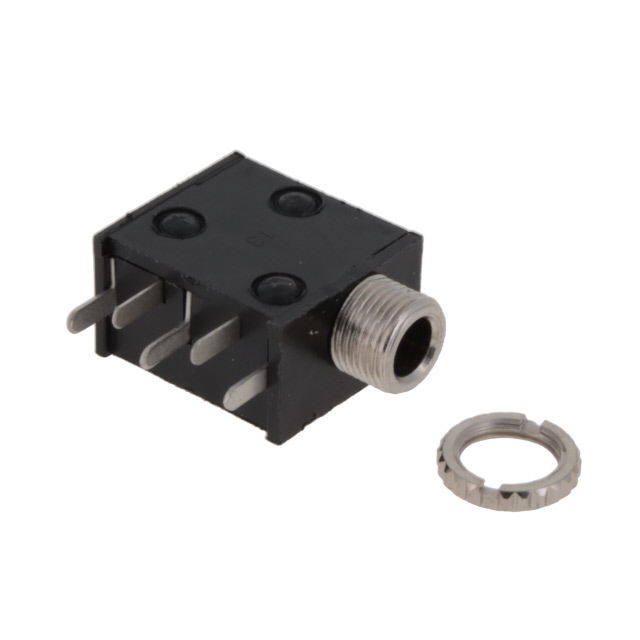

STX-3150-5C-1
ActiveKycon, Inc.
CONN JACK STEREO 3.5MM 5POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STX-3150-5C-1
ActiveKycon, Inc.
CONN JACK STEREO 3.5MM 5POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STX-3150-5C-1 |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating | Tin |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | Two Switches |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 5 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Thread Size | M6x0.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.18 | |
| 10 | $ 1.90 | |||
| 500 | $ 1.41 | |||
| 1000 | $ 1.21 | |||
| 5000 | $ 1.07 | |||
Description
General part information
STX-3150-5C-1
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
