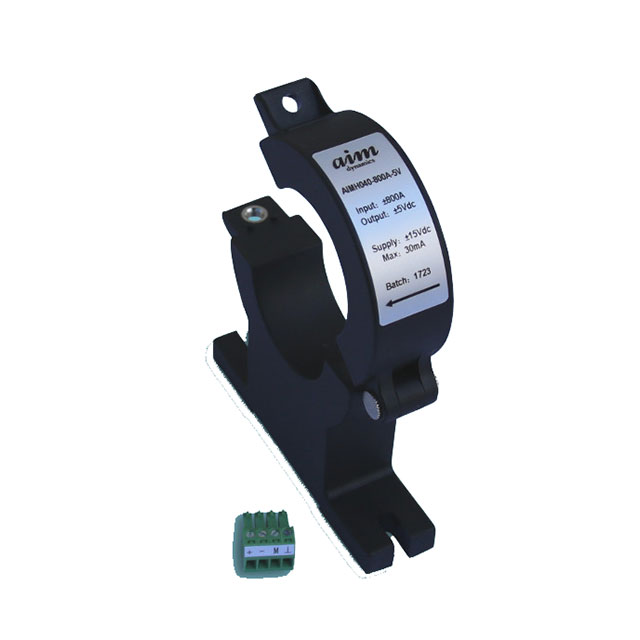

AIMH040-800A-5V
ActiveAim Dynamics
40MM SPLIT-CORE 800A:5V BI
Deep-Dive with AI
Search across all available documentation for this part.
AIMH040-800A-5V
ActiveAim Dynamics
40MM SPLIT-CORE 800A:5V BI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMH040-800A-5V |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 800 A |
| Current - Supply (Max) [Max] | 35 mA |
| For Measuring | AC/DC |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Output | 5 V |
| Output | Ratiometric |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensor Type | Hall Effect |
| Voltage - Supply | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 146.67 | |
Description
General part information
AIMH040-800A-5V
Current Sensor 800A 1 Channel Hall Effect Bidirectional Module, Single Pass Through
Documents
Technical documentation and resources
No documents available
