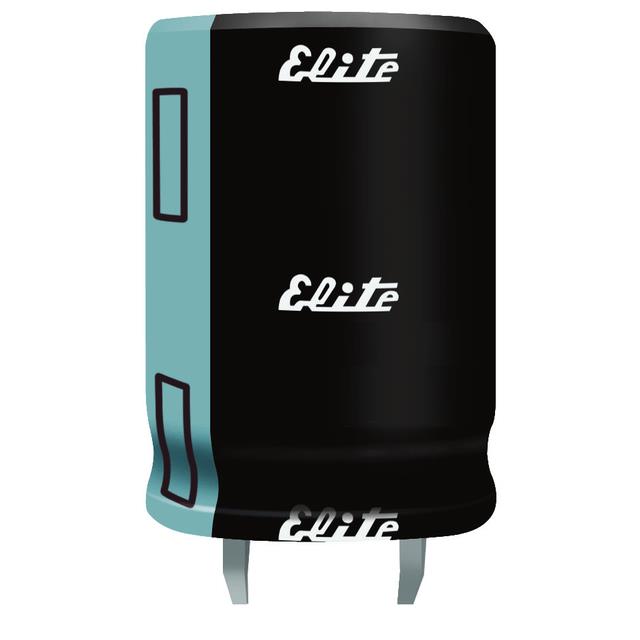

PL2W391MND2550Y
ActiveChinsan (Elite)
CAP ALUM 390UF 20% 450V SNAP TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL2W391MND2550Y
ActiveChinsan (Elite)
CAP ALUM 390UF 20% 450V SNAP TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL2W391MND2550Y |
|---|---|
| Applications | General Purpose |
| Capacitance | 390 µF |
| ESR (Equivalent Series Resistance) | 610 mOhm |
| Height - Seated (Max) [Max] [z] | 2.047 in |
| Height - Seated (Max) [Max] [z] | 52 mm |
| Impedance | 400 mOhms |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current @ High Frequency | 2.388 A |
| Ripple Current @ Low Frequency | 1.67 A |
| Size / Dimension [diameter] | 25 mm |
| Size / Dimension [diameter] | 0.984 " |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.65 | |
| 10 | $ 7.65 | |||
| 50 | $ 6.42 | |||
| 180 | $ 5.75 | |||
| 540 | $ 5.33 | |||
| 1080 | $ 5.23 | |||
Description
General part information
PL2W391MND2550Y
390 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 610mOhm @ 120Hz 2000 Hrs @ 105°C
