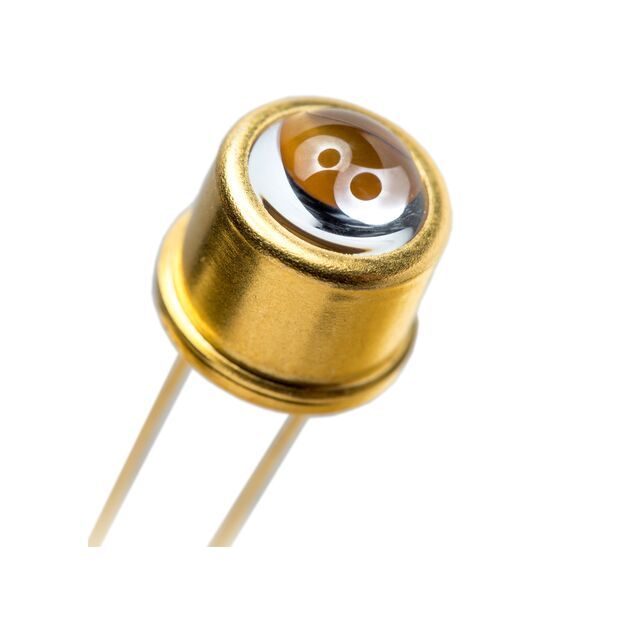

EOLD-340-012
ActiveEPIGAP OSA Photonics
UV EMITTER 340NM TO-46 DOME LENS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EOLD-340-012 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 20 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | TO-46-2 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 6 ° |
| Voltage - Forward (Vf) (Typ) | 4 V |
| Wavelength | 340 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 54.20 | |
| 10 | $ 42.34 | |||
| 100 | $ 40.23 | |||
Description
General part information
EOLD-340-012
Ultraviolet (UV) Emitter 340nm 4V 20mA 6° TO-46-2
