2EDGRC-5.0-02P-14-100L(H)
ActiveDegson
TERMINAL BLOCK, FEMALE STOCKETS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2EDGRC-5.0-02P-14-100L(H)
ActiveDegson
TERMINAL BLOCK, FEMALE STOCKETS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2EDGRC-5.0-02P-14-100L(H) |
|---|---|
| Color | Green |
| Contact Material | Copper |
| Contact Mating Finish | Tin |
| Current - IEC | 20 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 2 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 0.56 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
Description
General part information
2EDGRC-5.0-02P-14-100L(H)

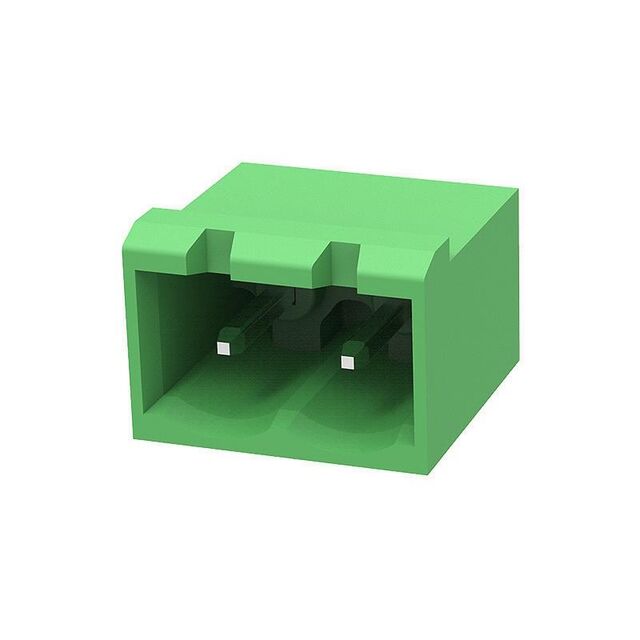

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Through Hole
