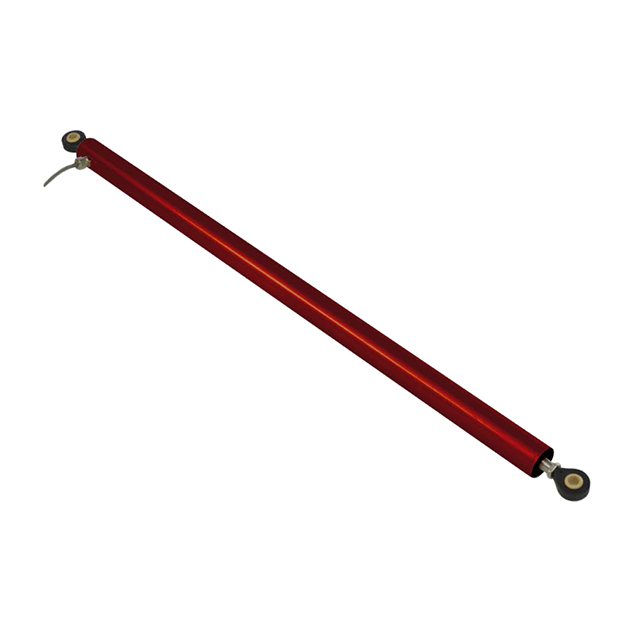

LRLE-27-450-R-00-10-A
ActiveAlliance Sensors Group
SENSOR LINEAR 457.2MM CABLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LRLE-27-450-R-00-10-A
ActiveAlliance Sensors Group
SENSOR LINEAR 457.2MM CABLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LRLE-27-450-R-00-10-A |
|---|---|
| Actuator Type | Round Shaft |
| For Measuring | Linear Position |
| Linear Range [Max] | 18 in |
| Linear Range [Max] | 457.2 mm |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Linearity | 0.15 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 10 V |
| Output [Min] | 0 mV |
| Package / Case | Cylinder |
| Technology | LVIT (Linear Variable Inductance Transducer) |
| Termination Style | Cable |
| Voltage - Supply [Max] | 10 V |
| Voltage - Supply [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 845.66 | |
| 5 | $ 797.50 | |||
Description
General part information
LRLE-27-450-R-00-10-A
LVIT (Linear Variable Inductance Transducer) Sensor Linear Position Round Shaft Cable
Documents
Technical documentation and resources
