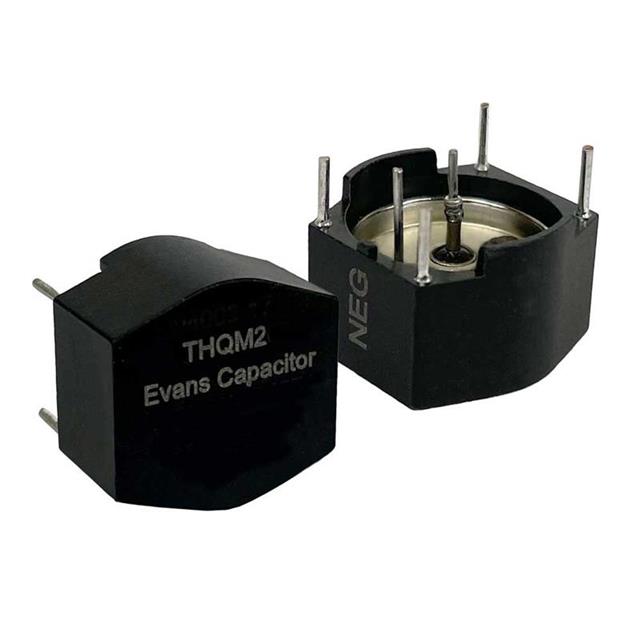

THQM2030302
ActiveQuantic Evans
WET TANTALUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
THQM2030302
ActiveQuantic Evans
WET TANTALUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THQM2030302 |
|---|---|
| Capacitance | 3000 µF |
| ESR (Equivalent Series Resistance) | 250 mOhm |
| Features | Hybrid Wet Tantalum |
| Height - Seated (Max) [Max] [z] | 11.43 mm |
| Height - Seated (Max) [Max] [z] | 0.45 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Size / Dimension [x] | 0.68 in |
| Size / Dimension [x] | 17.27 mm |
| Size / Dimension [y] | 16.76 mm |
| Size / Dimension [y] | 0.66 " |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 426.00 | |
| 10 | $ 325.00 | |||
| 50 | $ 297.00 | |||
Description
General part information
THQM2030302
3 mF Hermetically Sealed Tantalum Capacitors 30 V Radial, Can 250mOhm
