7907-09MTBG00N1A
ActiveOupiin

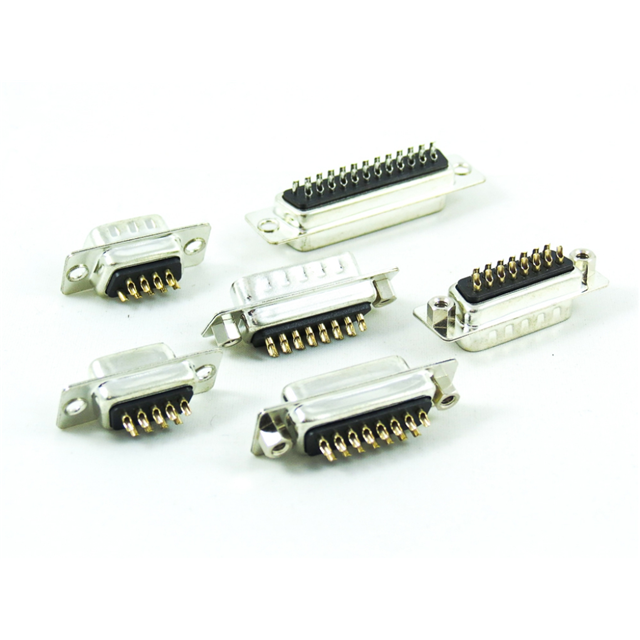

CONN D-SUB PLUG 9POS SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
7907-09MTBG00N1A
ActiveOupiin
CONN D-SUB PLUG 9POS SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7907-09MTBG00N1A |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polyester Thermoplastic, Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Tin Plated, Metal |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.38 | |
| 150 | $ 1.29 | |||
| 300 | $ 1.15 | |||
| 450 | $ 0.92 | |||
| 600 | $ 0.74 | |||
Description
General part information
7907-09MTBG00N1A
9 Position D-Sub Plug, Male Pins Connector
Documents
Technical documentation and resources
No documents available
