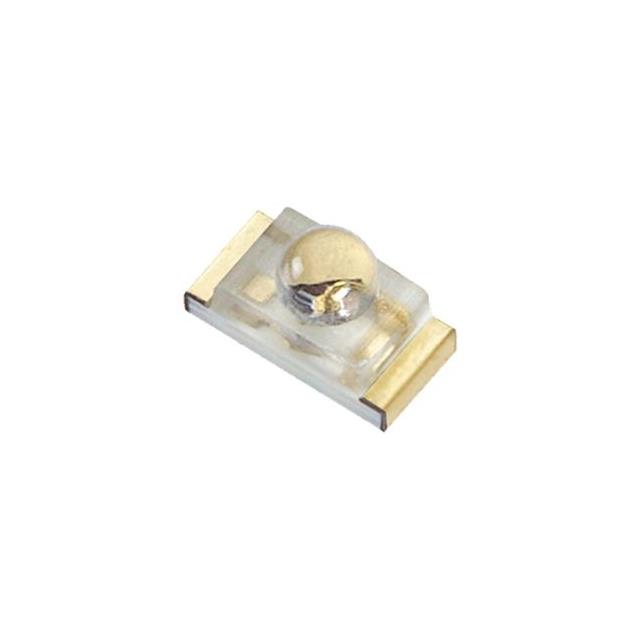

IN-S63WTB
ActiveInolux
LED BLUE CLEAR 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IN-S63WTB
ActiveInolux
LED BLUE CLEAR 0603 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IN-S63WTB |
|---|---|
| Color | Blue |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.05 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 0.7 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 400 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.50 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.25 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.50 | ||
| 10 | $ 0.31 | |||
| 25 | $ 0.25 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.10 | |||
| 15000 | $ 0.09 | |||
| 21000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
IN-S63WTB
Blue 470nm LED Indication - Discrete 3.2V 0603 (1608 Metric)
