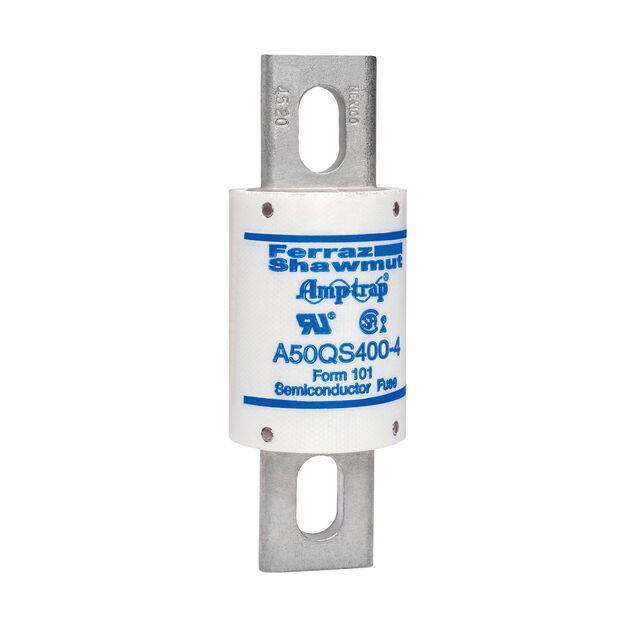

A50QS400-4
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,FAST ACTING,NO BLOWN INDICA
Deep-Dive with AI
Search across all available documentation for this part.
A50QS400-4
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,FAST ACTING,NO BLOWN INDICA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A50QS400-4 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CSA, UR |
| Breaking Capacity @ Rated Voltage | 200 kA, 87 kA |
| Current Rating (Amps) | 400 A |
| Fuse Type | Cartridge |
| Mounting Type | Bolt Mount |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 38.1 mm |
| Size / Dimension [diameter] | 1.5 in |
| Size / Dimension [x] | 4.331 in |
| Size / Dimension [x] | 110 mm |
| Voltage Rating - AC | 500 VAC |
| Voltage Rating - DC | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 133.29 | |
| 5 | $ 126.28 | |||
| 10 | $ 119.26 | |||
| 50 | $ 98.21 | |||
| 100 | $ 91.20 | |||
Description
General part information
A50QS400-4
400A 500 VAC 500 VDC Fuse Cartridge Bolt Mount
