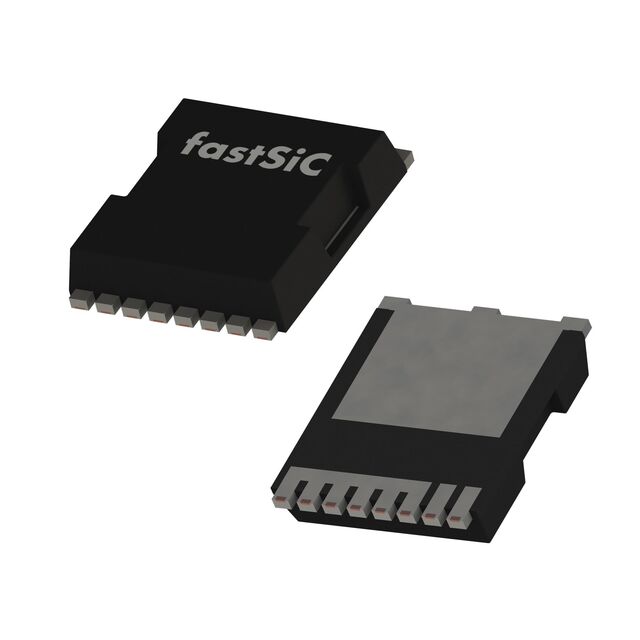

FF06060FA
ActivefastSiC
SICFET N-CH 650V 44A TOLL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FF06060FA
ActivefastSiC
SICFET N-CH 650V 44A TOLL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FF06060FA |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 44 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 18 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 69 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 1499 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerSFN |
| Power Dissipation (Max) | 214 W |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 80 mOhm |
| Supplier Device Package | Toll |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| Vgs (Max) [Max] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 11.83 | |
| 10 | $ 4.34 | |||
| 100 | $ 4.04 | |||
| 1200 | $ 3.94 | |||
Description
General part information
FF06060FA
N-Channel 650 V 44A (Tc) 214W (Tc) Surface Mount TOLL
