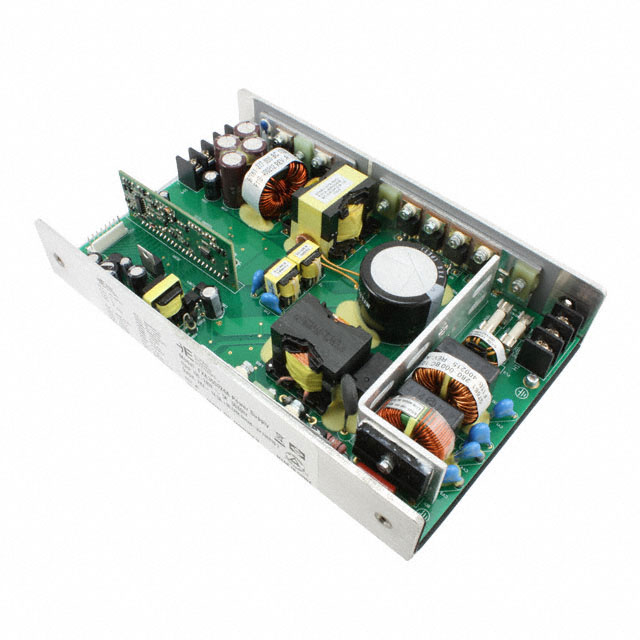

FXA350028F
ObsoleteInventus Power
AC/DC CONVERTER 28V 250W
Deep-Dive with AI
Search across all available documentation for this part.
FXA350028F
ObsoleteInventus Power
AC/DC CONVERTER 28V 250W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FXA350028F |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, cTUVus |
| Current - Output 1 | 9 A |
| Efficiency | 89 % |
| Features | Remote On/Off, Standby Output, PFC, Universal Input, Remote Sense |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 250 W |
| Power (Watts) | 350 W |
| Size / Dimension [x] | 203.2 mm |
| Size / Dimension [x] | 8 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38.1 mm |
| Type | Open Frame |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FXA350028F
Open Frame AC DC Converters 1 Output 28V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
