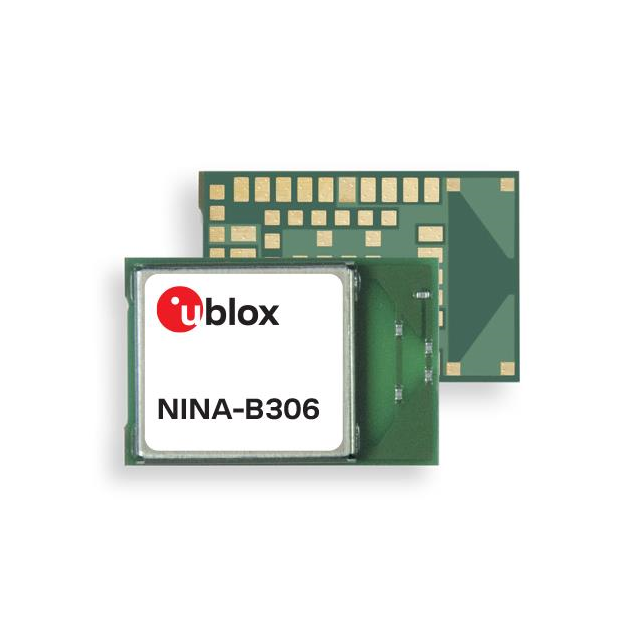

NINA-B306-01B
Activeu-blox
RF TXRX MOD BT TRACE SMD
Deep-Dive with AI
Search across all available documentation for this part.
NINA-B306-01B
Activeu-blox
RF TXRX MOD BT TRACE SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NINA-B306-01B |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 4.8 mA |
| Current - Transmitting [Max] | 14.1 mA |
| Current - Transmitting [Min] | 4.9 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 55-SMD Module |
| Power - Output | 10 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -100 dBm |
| Serial Interfaces | PWM, PDM, ADC, SPI, USB, GPIO, I2C, UART, I2S |
| Utilized IC / Part | nRF52840 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 13.76 | |
| 10 | $ 12.38 | |||
| 50 | $ 11.14 | |||
| 100 | $ 10.67 | |||
| Digi-Reel® | 1 | $ 13.76 | ||
| 10 | $ 12.38 | |||
| 50 | $ 11.14 | |||
| 100 | $ 10.67 | |||
| Tape & Reel (TR) | 500 | $ 10.03 | ||
Description
General part information
NINA-B306-01B
802.15.4, Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Documents
Technical documentation and resources
No documents available
