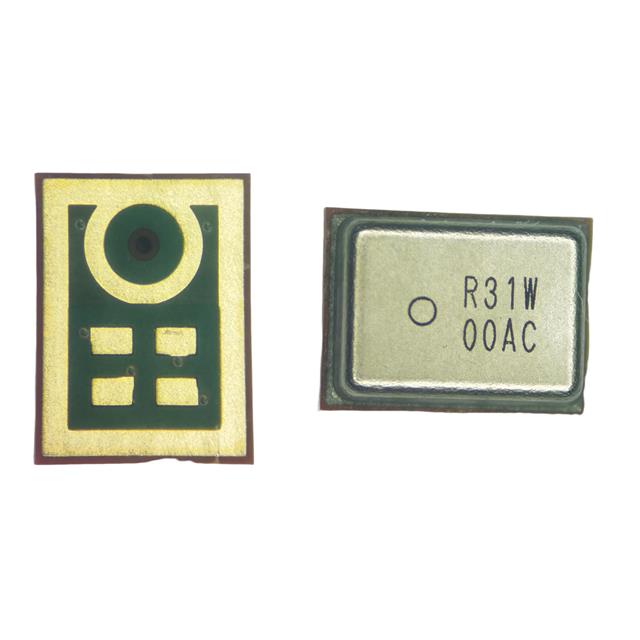

OWMMOD-403010A-S261F-BP
ActiveOle Wolff Electronics Inc
MIC MEMS DIGITAL PDM OMNI -26DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OWMMOD-403010A-S261F-BP
ActiveOle Wolff Electronics Inc
MIC MEMS DIGITAL PDM OMNI -26DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OWMMOD-403010A-S261F-BP |
|---|---|
| Current - Supply | 1.4 mA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 0.047 in |
| Height (Max) [Max] | 1.2 mm |
| Output Type | PDM, Digital |
| Port Location | Top |
| S/N Ratio | 63 dB |
| Sensitivity | -26 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage Range [Max] | 3.6 V |
| Voltage Range [Min] | 1.64 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.93 | |
| 10 | $ 0.76 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.51 | |||
| 5000 | $ 0.45 | |||
Description
General part information
OWMMOD-403010A-S261F-BP
100 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) 1.64 V ~ 3.6 V Omnidirectional (-26dB ±1dB @ 94dB SPL) Solder Pads
