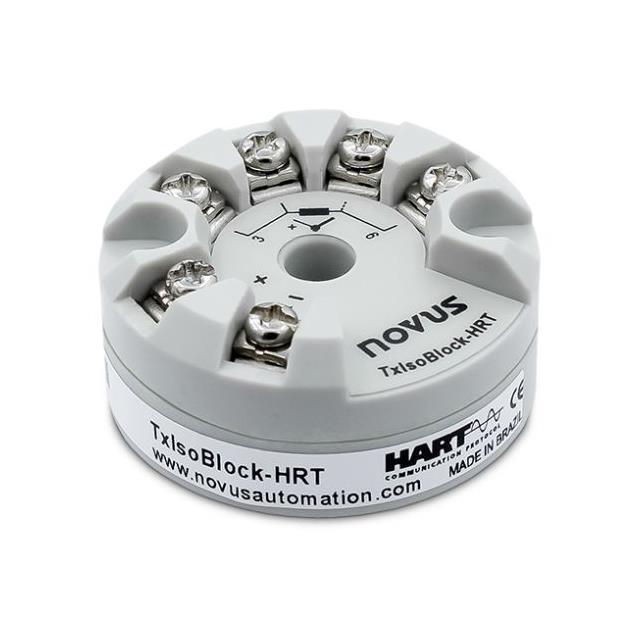

8808000300
ActiveNovus Automation
HART TEMPERATURE TRANSMITTER
Deep-Dive with AI
Search across all available documentation for this part.
8808000300
ActiveNovus Automation
HART TEMPERATURE TRANSMITTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8808000300 |
|---|---|
| Accuracy - Highest (Lowest) | 0.8 % |
| Features | Isolated, HART Protocol |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Current |
| Resolution | 0.25 µA |
| Sensing Temperature - Local [Max] | 3308 °F |
| Sensing Temperature - Local [Max] | 1820 °C |
| Sensing Temperature - Local [Min] | -270 °C |
| Sensing Temperature - Local [Min] | -454 °F |
| Sensor Type | N, 0-50 mV, B, Pt1000, T, S, K, Pt100, R, Thermocouples J, NTC, E |
| Voltage - Supply [Max] | 36 V, 20 mA |
| Voltage - Supply [Min] | 8.5 V, 4 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 224.00 | |
Description
General part information
8808000300
HART TEMPERATURE TRANSMITTER
