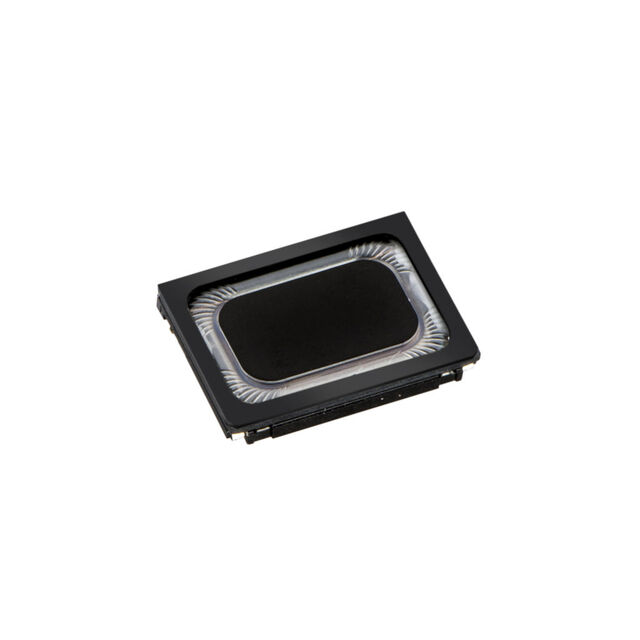

P1511008NM28CMR
ActiveStetron
LOUDSPEAKER 15X11MM, 8OHMS, 0.8W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P1511008NM28CMR
ActiveStetron
LOUDSPEAKER 15X11MM, 8OHMS, 0.8W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P1511008NM28CMR |
|---|---|
| Efficiency - dBA | 82 dBA |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 615 Hz |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Impedance | 8 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1.2 W |
| Power - Rated | 0.8 W |
| Shape | Rectangular |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [y] | 11 mm |
| Size / Dimension [y] | 0.433 in |
| Technology | Magnetic |
| Termination | Spring Contacts |
| Type | Microspeaker |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.17 | |
| 10 | $ 3.48 | |||
| 50 | $ 3.27 | |||
Description
General part information
P1511008NM28CMR
8 Ohms Microspeaker Speaker 800 mW Top Rectangular
