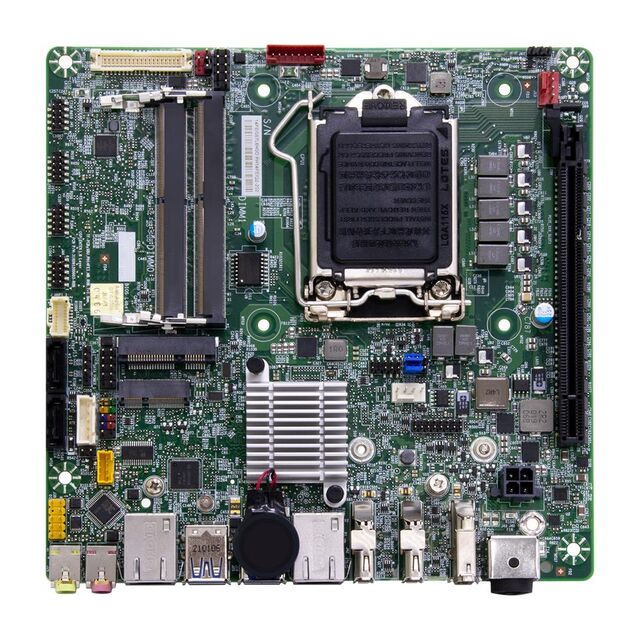

INS8365B-99T-UT
Active7STARLAKE
MINI-ITX,Q370,LGA1151,12VDC, UT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
INS8365B-99T-UT
Active7STARLAKE
MINI-ITX,Q370,LGA1151,12VDC, UT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | INS8365B-99T-UT |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel® Core™ i9-9900T |
| Ethernet | RJ45 |
| Ethernet [custom] | 2 |
| Expansion Site/Bus | PCIe, M.2, Mini-PCIe |
| Form Factor | mini-ITX |
| Number of Cores | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 36 W |
| RAM Capacity/Installed | 32 GB, 0 GB |
| RS-232 (422, 485) | 4 |
| Size / Dimension [x] | 170 mm |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [y] | 170 mm |
| Size / Dimension [y] | 6.69 in |
| Storage Interface | SATA 3.0 (2) |
| USB | USB 2.0 (5), USB 3.0 (4) |
| Video Outputs | HDMI, LVDS, DP (2) |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 570.00 | |
Description
General part information
INS8365B-99T-UT
Single Board Computer 2.1 ~ 4.4GHz 8 Core 32GB/0GB RAM Intel® Core™ i9-9900T
