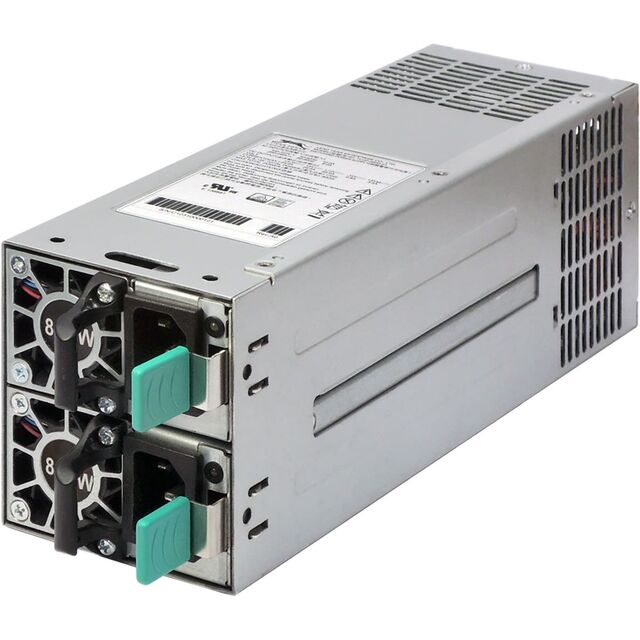

TC22-0800-01
ActiveLead Year Enterprise
AC/DC PSU 800W 1+1 REDUNDANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC22-0800-01
ActiveLead Year Enterprise
AC/DC PSU 800W 1+1 REDUNDANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC22-0800-01 |
|---|---|
| Approval Agency | UL, TUV, CB |
| Efficiency | 90 % |
| Features | PMBus, PFC, 80 Plus® Platinum, Load Share |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 800 W |
| Size / Dimension [x] | 76.4 mm |
| Size / Dimension [x] | 3.01 in |
| Size / Dimension [y] | 245 mm |
| Size / Dimension [y] | 9.65 in |
| Size / Dimension [z] | 3.35 in |
| Size / Dimension [z] | 85 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 5 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 540.00 | |
| 5 | $ 523.00 | |||
| 10 | $ 410.00 | |||
| 25 | $ 396.00 | |||
Description
General part information
TC22-0800-01
Enclosed AC DC Converters Output 3.3V 5V 12V -12V 100 ~ 240 VAC Input
