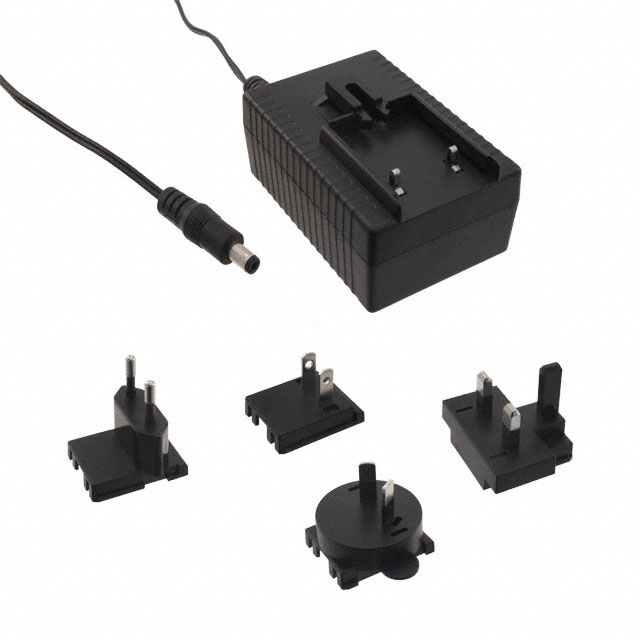

KTPS24-12020MP
ObsoleteVolgen + Furuno
AC/DC WALL MOUNT ADAPTER 12V 24W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KTPS24-12020MP
ObsoleteVolgen + Furuno
AC/DC WALL MOUNT ADAPTER 12V 24W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KTPS24-12020MP |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | Level V |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Included) |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 24 W |
| Region Utilized | International |
| Size / Dimension [x] | 77.5 mm |
| Size / Dimension [x] | 3.05 in |
| Size / Dimension [y] | 2.04 in |
| Size / Dimension [y] | 51.8 mm |
| Size / Dimension [z] | 40.5 mm |
| Size / Dimension [z] | 1.59 " |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 12 V |
| Weight | 0.348 lb |
| Weight | 157.85 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KTPS24-12020MP
12V 24 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
