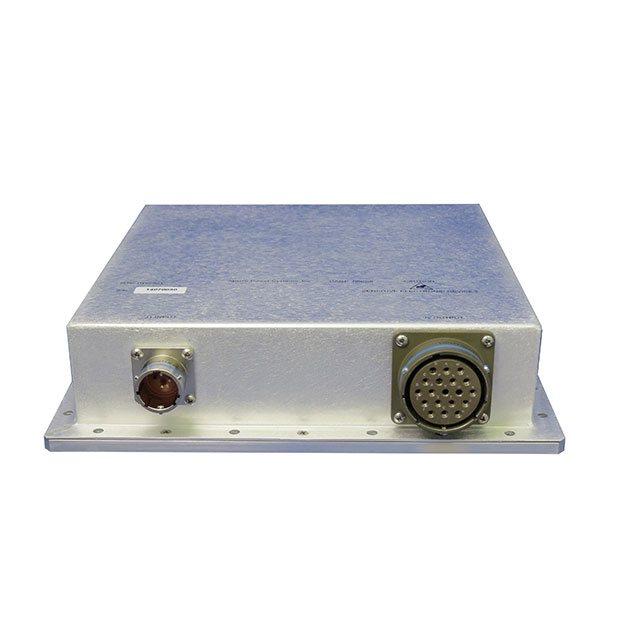

AP2901-003
ActiveAegis Power Systems
AC/DC CONVERTER 24V 600W
Deep-Dive with AI
Search across all available documentation for this part.
AP2901-003
ActiveAegis Power Systems
AC/DC CONVERTER 24V 600W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP2901-003 |
|---|---|
| Current - Output 1 | 25 A |
| Efficiency | 83 % |
| Features | PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 9.5 in |
| Size / Dimension [x] | 241.3 mm |
| Size / Dimension [y] | 9.5 in |
| Size / Dimension [y] | 241.3 mm |
| Size / Dimension [z] | 2.32 in |
| Size / Dimension [z] | 58.9 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 123 VAC |
| Voltage - Input [Min] | 107 VAC |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5395.00 | |
Description
General part information
AP2901-003
Enclosed AC DC Converters 1 Output 24V 107 ~ 123 VAC Input
Documents
Technical documentation and resources
No documents available
