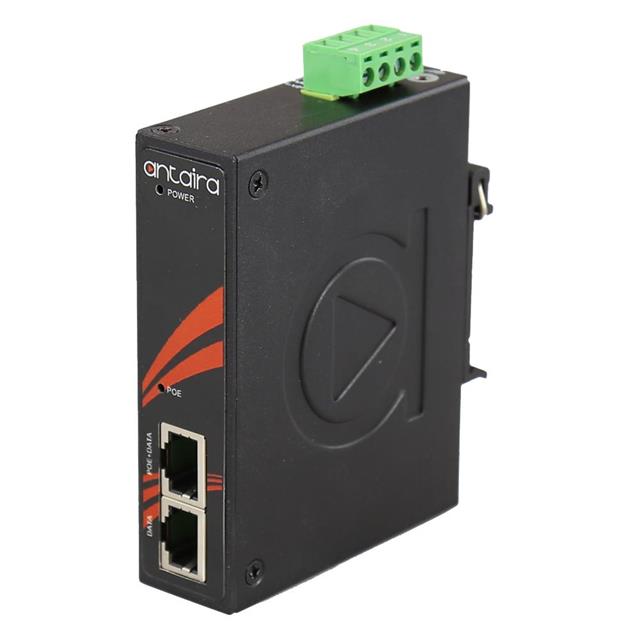

INJ-C201G-BT-T
ActiveICOMTECH, INC.
INDUSTRIAL GIGABIT POE++ INJECTO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
INJ-C201G-BT-T
ActiveICOMTECH, INC.
INDUSTRIAL GIGABIT POE++ INJECTO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | INJ-C201G-BT-T |
|---|---|
| Approval Agency | cULus, FCC, CE |
| Compliance | IEEE802.3af, IEEE802.3at, IEEE802.3ab, IEEE802.3bt |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Features | IP30, OCP |
| Input Connector | RJ45 (Data), Terminal Block (Power) |
| Mounting Type | Wall Mount |
| Number of Ports | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 90 W |
| Size / Dimension [x] | 75 mm |
| Size / Dimension [x] | 2.95 in |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [z] | 3.74 in |
| Size / Dimension [z] | 95 mm |
| Type | Passive Injector |
| Voltage - Input [Max] | 55 V |
| Voltage - Input [Min] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 338.00 | |
Description
General part information
INJ-C201G-BT-T
Power Over Ethernet (POE) 2 Port Passive Injector 10/100/1000 Mbps Data Rate
