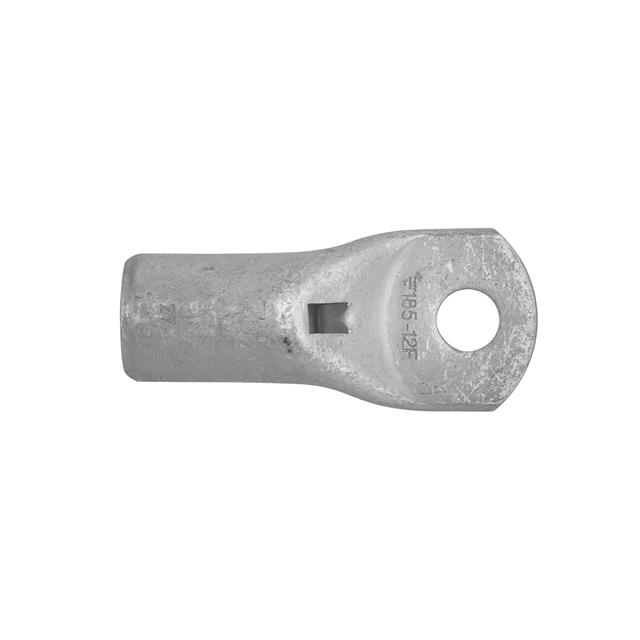

KRF185-12
ActiveElpress Inc.
BATTERY LUG 185 MM M12, 350 MCM
Deep-Dive with AI
Search across all available documentation for this part.
KRF185-12
ActiveElpress Inc.
BATTERY LUG 185 MM M12, 350 MCM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KRF185-12 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL listed |
| Insulation | Non-Insulated |
| Length - Overall [x] | 3.386 in |
| Length - Overall [x] | 86 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M12 Stud |
| Tab Thickness | 5.9 mm |
| Tab Thickness [z] | 0.232 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 39 mm |
| Width - Outer Edges [y] | 1.535 in |
| Wire Gauge | 350 MCM (kcmil) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 16.08 | |
Description
General part information
KRF185-12
Terminal Connector Rectangular Ring, Tubular 350MCM (kcmil) M12 Stud
Documents
Technical documentation and resources
No documents available
