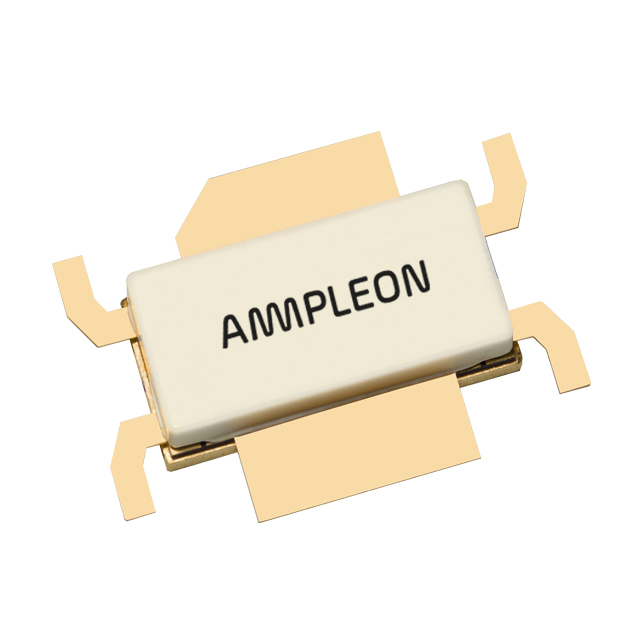

BLF8G20LS-200V,115
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V LDMOST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLF8G20LS-200V,115
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V LDMOST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLF8G20LS-200V,115 |
|---|---|
| Current - Test | 1.6 A |
| Frequency [Max] | 1.88 GHz |
| Frequency [Min] | 1.81 GHz |
| Gain | 17.5 dBi |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-1120B |
| Power - Output | 55 W |
| Supplier Device Package | LDMOST |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BLF8G20LS-200V,115
RF Mosfet 28 V 1.6 A 1.81GHz ~ 1.88GHz 17.5dB 55W LDMOST
