UM4401
ActiveUnion Semiconductor International Limited
4-LINE RC EMI FILTER WITH TVS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM4401
ActiveUnion Semiconductor International Limited
4-LINE RC EMI FILTER WITH TVS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM4401 |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Attenuation Value [custom] | -36 dB |
| Attenuation Value [custom] | -32 dB |
| Center / Cutoff Frequency | 150 MHz |
| ESD Protection | True |
| Filter Order | 2nd |
| Height [z] | 0.61 mm |
| Height [z] | 0.024 in |
| Mounting Type | Surface Mount |
| Number of Channels | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

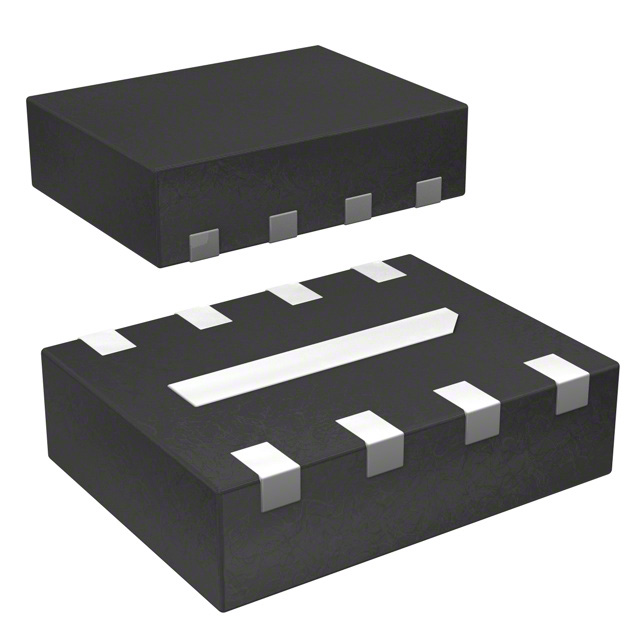

| Package / Case | 8-UFDFN |
| Size / Dimension [x] | 0.083 in |
| Size / Dimension [x] | 2.1 mm |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [y] | 0.063 in |
| Technology | RC (Pi) |
| Type | Low Pass |
| Values | 100 Ohms, 10 pF |
| Voltage - Rated | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.60 | |
| 2 | $ 0.60 | |||
| 10 | $ 0.55 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.35 | |||
Description
General part information
UM4401
RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100Ohm, C = 10pF 8-UFDFN
