P1CA-SAMSAM-141CC-24
ActiveP1dB Inc
CBL ASSY SMA PLUG TO PLUG 24"
Deep-Dive with AI
Search across all available documentation for this part.
P1CA-SAMSAM-141CC-24
ActiveP1dB Inc
CBL ASSY SMA PLUG TO PLUG 24"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P1CA-SAMSAM-141CC-24 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable .141 |
| Frequency - Max [Max] | 26.5 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2 | $ 28.75 | |
| 10 | $ 27.70 | |||
Description
General part information
P1CA-SAMSAM-141CC-24

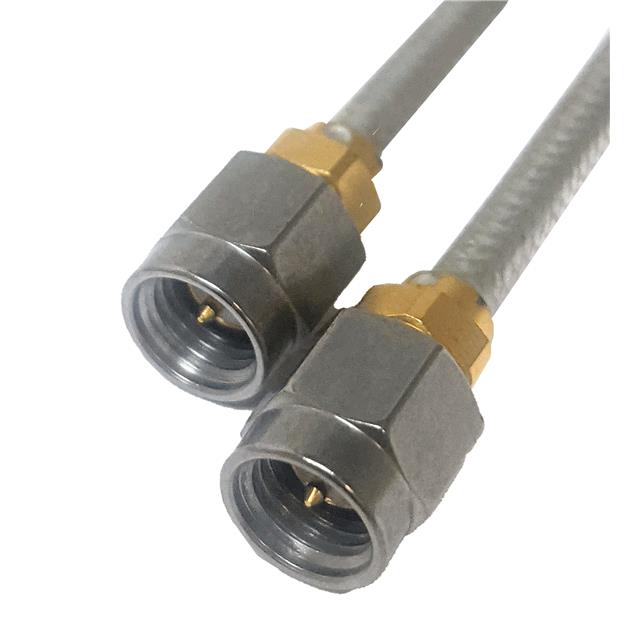

Cable Assembly Coaxial SMA to SMA Hand Formable .141 24.00" (609.60mm)
