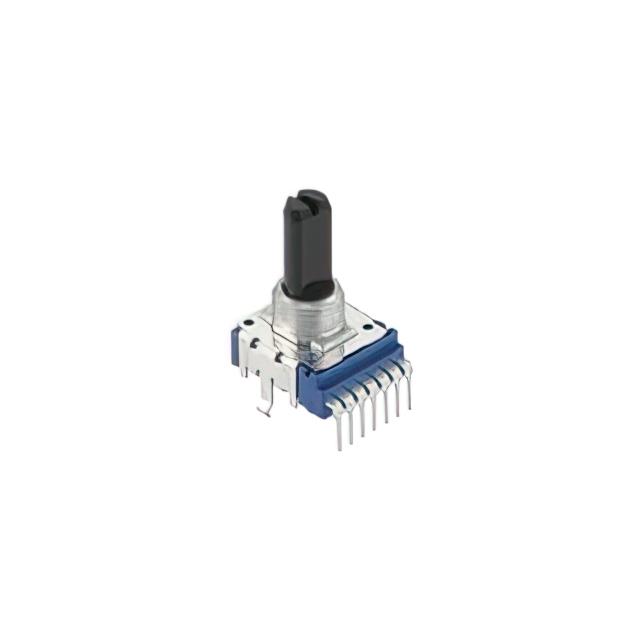

RK14K124003H
ActiveAlps Alpine
POT 10K OHM 1/20W LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
RK14K124003H
ActiveAlps Alpine
POT 10K OHM 1/20W LINEAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RK14K124003H |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length | 22.5 mm |
| Actuator Length [x] | 0.886 in |
| Actuator Type | Flatted |
| Adjustment Type | Top Adjustment |
| Built in Switch | Detent |
| Bushing Thread | M9 x 0.75 |
| Number of Gangs | 2 |
| Number of Turns | 1 |
| Power (Watts) | 0.05 W |
| Power (Watts) | 50 mW |
| Resistance (Ohms) | 10k |
| Rotation | 300 ░ |
| Size - Body [x] | 0.646 in |
| Size - Body [x] | 16.4 mm |
| Size - Body [y] | 0.551 in |
| Size - Body [y] | 14 mm |
| Taper | Linear |
| Termination Style | Board Locks, PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.20 | |
| 10 | $ 2.81 | |||
| 25 | $ 2.52 | |||
| 40 | $ 2.42 | |||
| 80 | $ 2.33 | |||
| 230 | $ 2.23 | |||
| 440 | $ 1.84 | |||
| 1000 | $ 1.75 | |||
| 5000 | $ 1.45 | |||
Description
General part information
RK14K124003H
10k Ohm 2 Gang Linear Panel Mount Potentiometer Detent 1.0 Kierros 0.05W, 1/20W PC Pins, Board Locks
