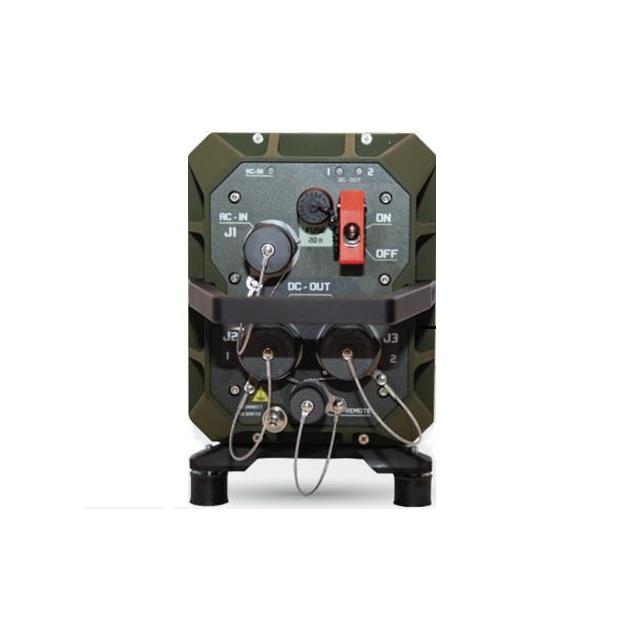

AP14G01K2282
ActiveAegis Power Systems
AC/DC CONVERTER 28V 1200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AP14G01K2282
ActiveAegis Power Systems
AC/DC CONVERTER 28V 1200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AP14G01K2282 |
|---|---|
| Applications | Industrial |
| Current - Output 1 | 43 A |
| Efficiency | 89 % |
| Features | IP67, PFC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 1200 W |
| Size / Dimension [x] | 339.8 mm |
| Size / Dimension [x] | 13.38 in |
| Size / Dimension [y] | 160 mm |
| Size / Dimension [y] | 6.3 " |
| Size / Dimension [z] | 199.9 mm |
| Size / Dimension [z] | 7.87 " |
| Type | Enclosed |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7290.00 | |
Description
General part information
AP14G01K2282
Enclosed AC DC Converters 1 Output 28V 85 ~ 264 VAC Input
