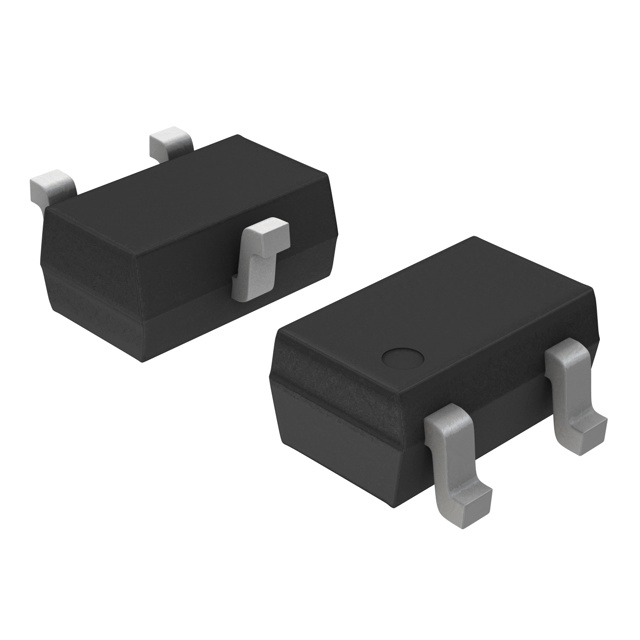

UM809XP
ActiveUnion Semiconductor International Limited
3-PIN, LOW-POWER P RESET CIRCUI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM809XP
ActiveUnion Semiconductor International Limited
3-PIN, LOW-POWER P RESET CIRCUI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM809XP |
|---|---|
| Mounting Type | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Totem Pole, Push-Pull |
| Package / Case | SC-70, SOT-323 |
| Reset | Active Low |
| Reset Timeout [Min] | 140 ms |
| Supplier Device Package | SOT-323 |
| Type | Power Supply Monitor |
| Voltage - Threshold | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2 | $ 0.51 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.24 | |||
Description
General part information
UM809XP
Supervisor Push-Pull, Totem Pole 1 Channel SOT-323
Documents
Technical documentation and resources
