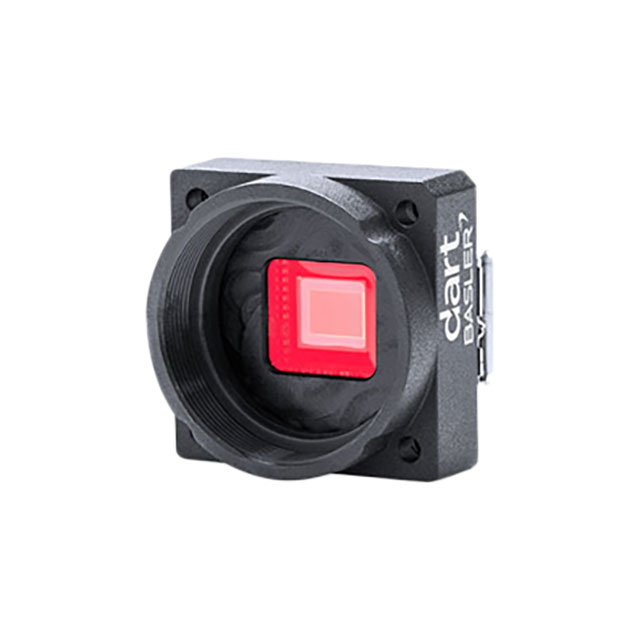

106988
ActiveBasler Inc.
1600 X 1200, 60 FPS, COLOR
Deep-Dive with AI
Search across all available documentation for this part.
106988
ActiveBasler Inc.
1600 X 1200, 60 FPS, COLOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 106988 |
|---|---|
| Color | RGB |
| Frames per Second | 60 |
| Height (Max) | 19.9 mm |
| Height (Max) [Max] | 0.783 in |
| Interface | USB 3.0 |
| Lens Mount | S |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Pixel Size [x] | 4.5 µm |
| Pixel Size [y] | 4.5 µm |
| Resolution [x] | 1600 pixels |
| Resolution [y] | 1200 pixels |
| Sensor | EV76C570 |
| Shutter | Global |
| Size / Dimension [x] | 29.3 mm |
| Size / Dimension [x] | 1.153 " |
| Size / Dimension [y] | 1.142 in |
| Size / Dimension [y] | 29 mm |
| Type | CMOS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 379.00 | |
Description
General part information
106988
1600 X 1200, 60 FPS, COLOR
Documents
Technical documentation and resources
No documents available
