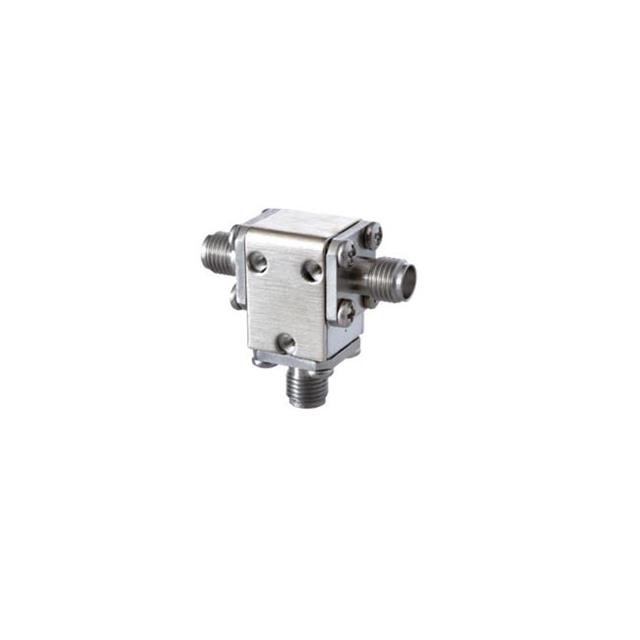

DSC1722
ActiveDiTom Microwave
SPACE CIRCULATOR 17.3-22 GHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSC1722
ActiveDiTom Microwave
SPACE CIRCULATOR 17.3-22 GHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC1722 |
|---|---|
| Connector Type | SMA-FEMALE |
| Frequency [Max] | 27 GHz |
| Frequency [Min] | 22 GHz |
| Insertion Loss | 0.6 dB |
| Isolation [Min] | 20 dB |
| Package / Case | Module, SMA Connectors |
| Power - Average Forward | 10 W |
| Supplier Device Package | Module |
| Type | Circulator |
| VSWR | 1.25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 1853.07 | |
Description
General part information
DSC1722
SPACE CIRCULATOR 17.3-22 GHZ
Documents
Technical documentation and resources
